Standby Systems

standby_sys





  • Standby Kits for Pneumatic and Electrical Systems
  • FAA-PMA and STC Approved



PNEUMATIC STANDBY SYSTEM KITS

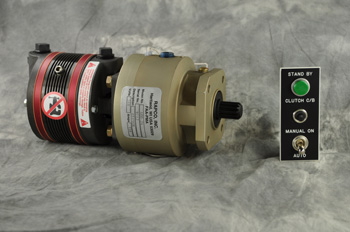

Pneumatic standby systems are highly recommended for aircraft that are flown in IFR conditions. RAPCO offers FAA-PMA and STC approved Pneumatic Standby System kits for Beechcraft Bonanza models H and newer. The system is automatically activated when it detects a failure of the aircrafts primary dry air pump. There is also a manual over ride switch for use as a backup and for preflight checks. The switch along with a circuit breaker and annunciator light  are mounted on a placard on the aircrafts instrument panel. The placard measures 1 5/16” X 3 ¼”. It can be ordered in a vertical or a horizontal format to best fit your panel. When low air flow is detected by a sensor in the primary system, the standby dry air pump is immediately engaged by an electro magnetic clutch that is mounted on the engines auxiliary accessory pad. It operates as needed and draws only one amp with no radio interference. A light visually alerts you when the standby system is functioning. The kits have an average weight of 9.5 Lbs. and typical installation time is approximately 8 to 9 hours. Kits for pressure or vacuum systems are available in 12 volt or 24 volt and are configured for your particular aircraft.

  Part Number Description

400P+

400P+ Standby Pressure System Kit with RAP216CW dry air pump included
400P 400P Standby Pressure System Kit without dry air pump
400V+ 400V+ Standby Vacuum System Kit with RAP216 CW dry air pump included
400V 400V Standby Vacuum System Kit without dry air pump


To order Standby Pneumatic Systems please provide the following information.

  1. Beechcraft Bonanza Model
  2. Year of aircraft ________
  3. Serial Number _________
  4. 12 volt or 24 volt system ___________
  5. Pressure or Vacuum System ______________
  6. If aircraft has a pressure system, is the air regulator located on the right or left side of engine compartment, as viewed from pilot seat. _______________
  7. Panel placard preference 1 5/16” X 3 ¼” Vertical or Horizontal ___________

For service parts or update kit, see informational tips


CLUTCH KIT FOR STANDBY GENERATORS
The RAPCO clutch kit is for Bonanzas owners that already have the Beechcraft factory standby generator installed but do not want it to run continuously. Simply flip the switch to engage the electro magnetic clutch between the engine and the generator. This greatly increases generator service life and saves on expensive overhauls. The clutch kits are FAA-PMA and STC approved for Beechcraft Bonanza models 33, 35, 36, with 12 volt electrical systems, that already have the Beechcraft generator kit PN 35-0312 with the TRW P/N. 360380013-1 generator. Bonanzas with 24 volt systems require a field approval for installation. Installation time is approximately 5 hours.


  Part Number Description
400G12 400G12 Clutch kit for generators - 12 Volt
400G24 400G24 Clutch kit for generators - 24 Volt


To order the Standby Pneumatic System, please provide the following information.

    1. Beechcraft Bonanza Model
    2. Year of aircraft ________
    3. Serial Number ___________
    4. 12 volt or 24 volt system ___________
    5. Is factory standby generator currently installed? __________


STANDBY SYSTEM COMPONENTS

RAP216CW

RAP216CW

Dry Air Pump

400_EXC

RA400-1200

Clutch 12 Volt New
Supersedes P/N 200-12, 400-12

400_NEW

RA400-2400

Clutch 24 Volt New
Supersedes P/N 200-24, 400-24

62-1110

62-1110

Filter - Inlet

RA1J4-7

RA1J4-7

Filter - In Line
AV-7

AV-7

Check Valve
MPL601-3

MPL601-3

Switch – Pressure, Bolth normally open (NO) & normally closed (NC) terminals
77342

77342

Switch - Vacuum, Normally Open (NO)
77343

77343

Switch - Vacuum, Normally Closed (NC)
1090C5-12

1090C5-12

Lamp & Socket, Green 12 Volt

1090C5-24

1090C5-24

Lamp & Socket, Green 24 Volt

ETA41-06-P30

ETA41-06-P30

Circuit Breaker 3 Amp
300K

300K (Specify Pressure or Vacuum, 12 or 24 Volt, Vertical or Horizontal Placard)

Upgrade Kit
The Update Kit converts early pneumatic standby systems with a single sensor switch, that simply showed that the primary system had failed, to a dual sensor switch system, that activates the light to confirm that the standby system is actually functioning.
